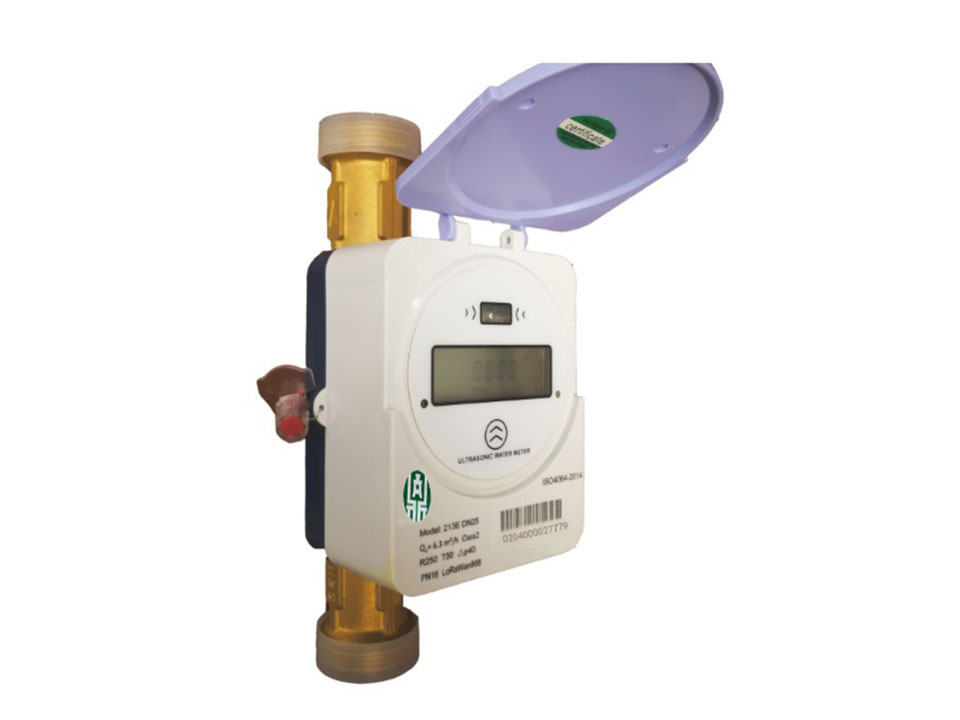

ZDW36-T Ultrasonic LoRa-RF RemoteReading Water Meter launched by STRON combined years’ experience in meteringresearch and development, adopting new technology of Ultrasonic flow converterGP30 from ACAM Germany. ZDW36-T is reliable and absolute matured achievement inhigh accuracy measurement. It has high accuracy reach to R400, and would notmeasure air, not be effected by sand.

The meter is equipped with latestSemtech LoRa-RF communication unit, allowing it to communicate Dataconcentrator unit (DCU) and Handheld meter reading unit situated up to 1kmaway.



Technical Parameters

Accuracy:     Class 2/B

Maximum working pressure:    1.6MPa

Temperature grade:    T30/T50/T90

EMC grade: E1

LCD Display:      8digit+prompt

The sensitivity of upstream flow field:  U10

The sensitivity of downstream flowfield:    D5

Climatic and mechanical environmentalgrades:  B

Display ranges:    0~9999.9999m3

Power supply:     Battery DC3.6V

Comsumption:     <0.2mW

Protection grade: IP68

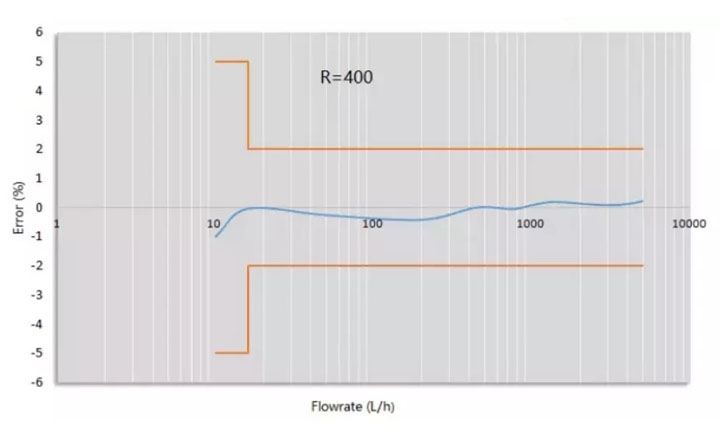

Accuracy Curve

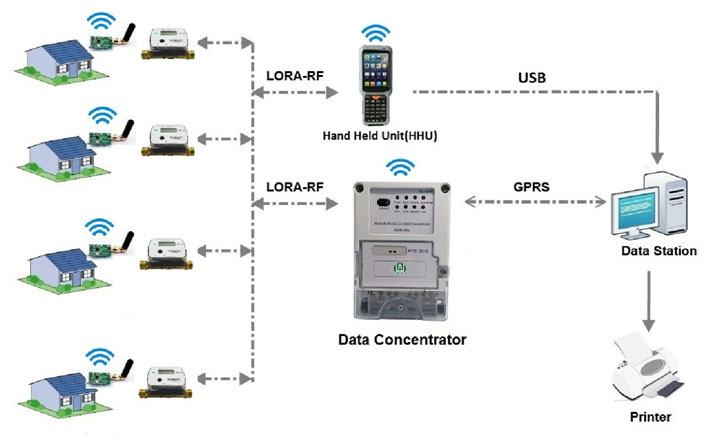

Remote Reading Solution
