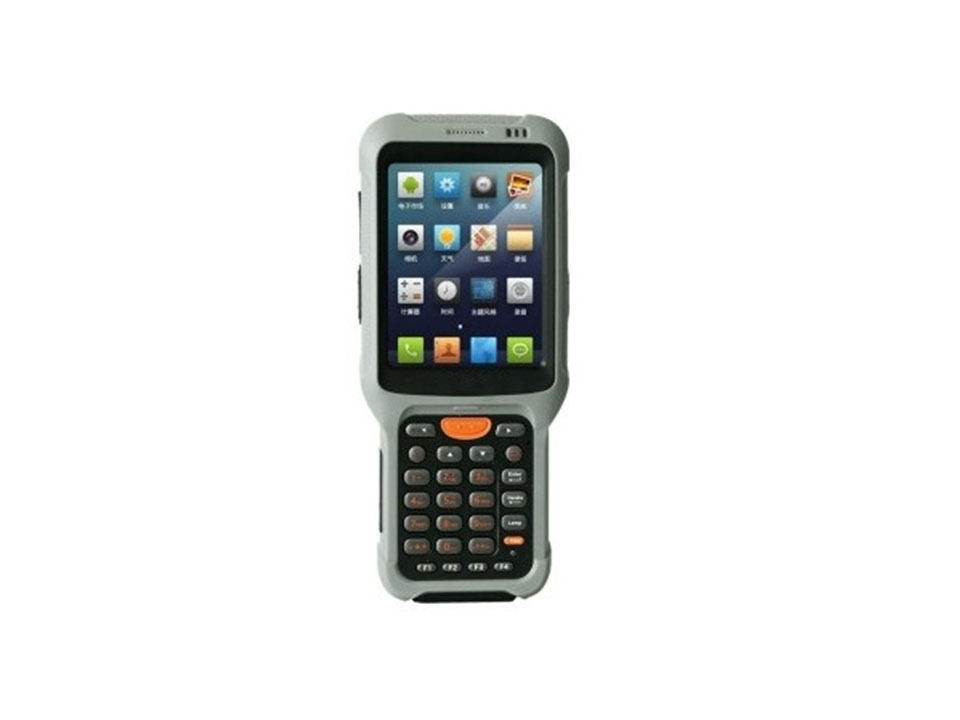

The ZD-HHU18 Handheld Meter Reading Unit isan intelligent device which is used for Remote Meter Reading of Smart Meters. ZD-HHU18adopts advanced technology which has excellent quality, reliable performanceand available in various models for your specific business applications.



Main Features

Adopt Microsoft Windows CE operatingsystem

DLMS/COSEM standard compliant

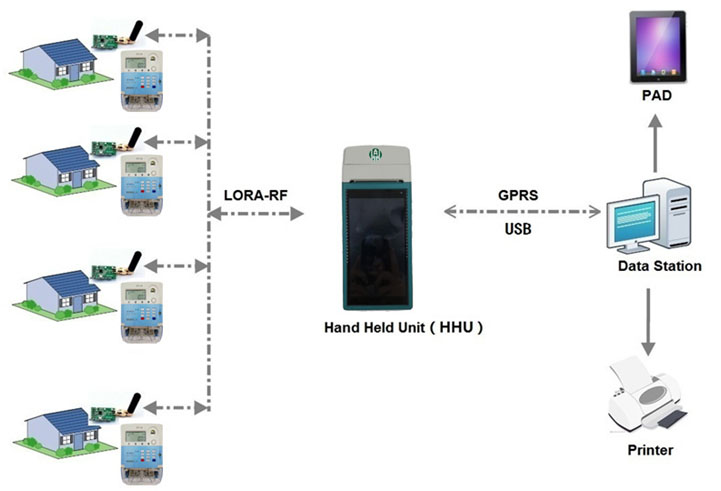

RF-LORA downlink to smart meters

Upload data to head-end AMR/AMI systemvia USB port

Mass storage memory

Data collection include total consumption/historical daily & monthly consumption

Meter parameter/ status/ Real-time datareading



Parameters
OS	Microsoft Windows CE
CPU	ARM926E
Memory	128M RAM + 256M Flash
Display	2.8’’ LCD  320x240 pixel touchpad
Network	WiFi/Bluetooth/LORA
Built-in Infrared Port	Far distance optical port
Physical Interface	USB
Camera	1.3 million pixel
Data Backup	TF extend
Battery	4400mAh chargeable Lithium-ion battery
Protection Class	IP65
Operation Temparature	-20℃~+50℃
Dimension	150x71x35mm
Weight	0.4kg
